AlphaZero for 3D Bin Packing: MCTS with Learned Policy-Value Networks

Aneesh Muppidi^1
1Harvard University

Code AlphaZero PPO Baseline

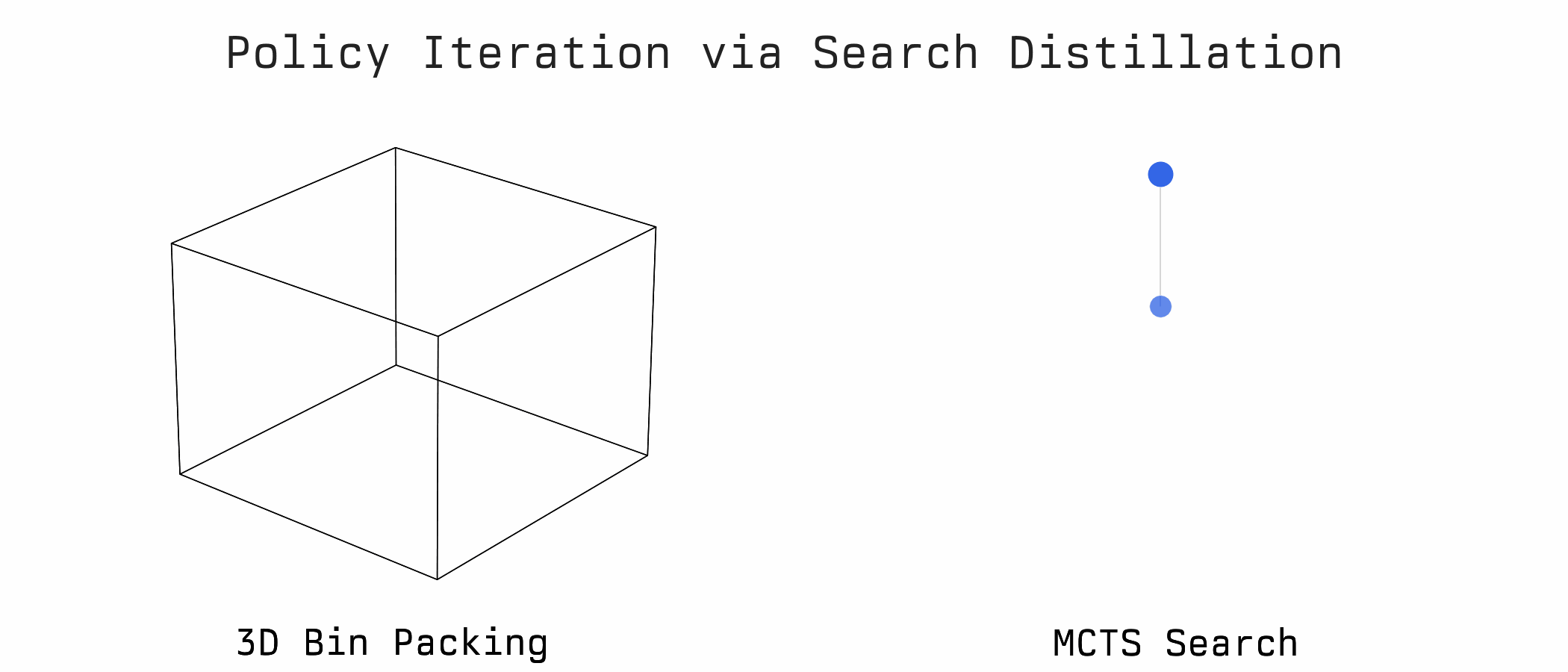

The 3D Bin Packing Problem

The 3D bin packing problem is a classic NP-hard combinatorial optimization challenge: given a set of rectangular items with dimensions (x, y, z) and a container of fixed size, pack as many items as possible to maximize space utilization. Unlike the 1D knapsack where we only decide which items to include, 3D packing requires deciding where to place each item—and placement affects future available spaces.

Jumanji's BinPack-v2 environment formulates this as a sequential decision process. At each timestep, the agent selects:

1. An Empty Maximal Space (EMS)—a maximal empty rectangular region in the container
2. An item from the remaining unpacked items

The action space is the Cartesian product: A = E × I, where E = obs_num_ems = 40 and I = max_num_items = 20. This yields 800 possible actions per step.

State Representation

The dense reward equals the volume utilization gained at each step. Episode returns sum to total utilization in [0, 1].

Monte Carlo Tree Search with Neural Guidance

Pure MCTS struggles with large action spaces. AlphaZero's insight: use a neural network to provide prior probabilities over actions (guiding exploration) and value estimates (replacing random rollouts).

The neural network is trained to match the search policy (visit distribution) and value (Monte Carlo returns), creating a virtuous cycle: better networks → better search → better training targets → better networks.

The mctx Library: Gumbel MuZero

We use DeepMind's mctx library, which provides JAX-native MCTS implementations. Specifically, we employ gumbel_muzero_policy—a policy improvement algorithm from "Policy improvement by planning with Gumbel" (ICLR 2022).

Why Gumbel MuZero?

Standard MCTS uses stochastic action selection at the root. Gumbel MuZero instead uses Sequential Halving with Gumbel noise to deterministically select which actions to explore:

• Better sample efficiency with limited simulations
• Principled handling of large action spaces
• Improved policy targets via softmax(prior_logits + completed_qvalues)

The Recurrent Function

MCTS requires a model of the environment. For BinPack, we use the true environment dynamics (perfect model):

def recurrent_fn(model, rng_key, action, state):
    model_params, model_state = model

    # Unflatten: (B,) -> (B, 2) for (ems_id, item_id)
    action_pair = unflatten_action(action)

    # Step the environment
    next_state, next_ts = jax.vmap(env.step)(state, action_pair)

    # Neural network predictions at next state
    obs = next_ts.observation
    (logits, value), _ = forward.apply(
        model_params, model_state, obs
    )

    # Mask invalid actions
    valid_flat = safe_action_mask_flat(obs.action_mask)
    logits = mask_logits(logits, valid_flat)

    return mctx.RecurrentFnOutput(
        reward=next_ts.reward,
        discount=jnp.where(next_ts.discount == 0, 0.0, 1.0),
        prior_logits=logits,
        value=value,
    ), next_state

View recurrent_fn

Action Masking

The 2D action mask (E, I) must be flattened and passed to MCTS as invalid_actions. We ensure at least one action is valid to avoid numerical issues:

def safe_action_mask_flat(action_mask_2d):
    """Flatten (B, E, I) -> (B, E*I) with fallback."""
    flat = action_mask_2d.reshape((action_mask_2d.shape[0], -1))
    has_any = jnp.any(flat, axis=-1)

    # If no valid action, allow dummy action 0
    dummy = jax.nn.one_hot(
        jnp.zeros_like(has_any, dtype=jnp.int32),
        num_actions
    ).astype(jnp.bool_)

    return jnp.where(has_any[:, None], flat, dummy)

Invoking the Search

policy_out = mctx.gumbel_muzero_policy(
    params=model,
    rng_key=key,
    root=mctx.RootFnOutput(
        prior_logits=root_logits,
        value=value,
        embedding=state,  # Env state as embedding
    ),
    recurrent_fn=recurrent_fn,
    num_simulations=32,
    invalid_actions=~valid_flat,
    qtransform=mctx.qtransform_completed_by_mix_value,
    gumbel_scale=1.0,
)

action = policy_out.action
action_weights = policy_out.action_weights  # Training target

Transformer Architecture

The policy-value network must process variable-length sets of EMS regions and items with complex relational structure. We use a Transformer-based architecture with cross-attention between EMS and item tokens.

Torso: Cross-Attention Between EMS and Items

The key insight: EMS-item compatibility is encoded in the action mask. We use this as an attention mask for cross-attention:

class BinPackTorso(hk.Module):
    def __call__(self, observation):
        # Embed EMS: (B, E, 6) -> (B, E, D)
        ems_leaves = jnp.stack(
            jax.tree_util.tree_leaves(observation.ems), axis=-1
        )
        ems_emb = hk.Linear(self.model_size)(ems_leaves)

        # Embed Items: (B, I, 3) -> (B, I, D)
        item_leaves = jnp.stack(
            jax.tree_util.tree_leaves(observation.items), axis=-1
        )
        items_emb = hk.Linear(self.model_size)(item_leaves)

        # Cross-attention masks from action_mask
        ems_cross_items = jnp.expand_dims(
            observation.action_mask, axis=-3
        )

        for block_id in range(self.num_layers):
            # Self-attention on EMS
            ems_emb = TransformerBlock(...)(
                ems_emb, ems_emb, ems_emb, ems_mask
            )
            # Self-attention on Items
            items_emb = TransformerBlock(...)(
                items_emb, items_emb, items_emb, items_mask
            )
            # Cross-attention: EMS ↔ Items
            ems_emb = TransformerBlock(...)(
                ems_emb, items_emb, items_emb, ems_cross_items
            )
            items_emb = TransformerBlock(...)(
                items_emb, ems_emb, ems_emb, items_cross_ems
            )

        return ems_emb, items_emb

View BinPackTorso

Policy Head: Outer Product

To produce logits over the joint action space (E × I), we compute an outer product between projected EMS and Item embeddings:

# Project to policy space
ems_h = hk.Linear(self.model_size)(ems_embeddings)     # (B, E, D)
items_h = hk.Linear(self.model_size)(items_embeddings) # (B, I, D)

# Outer product: (B, E, D) x (B, I, D) -> (B, E, I)
logits_2d = jnp.einsum("...ek,...ik->...ei", ems_h, items_h)

# Mask and flatten: (B, E, I) -> (B, E*I)
logits_2d = jnp.where(observation.action_mask, logits_2d, -1e9)
logits = logits_2d.reshape(batch_size, -1)

Value Head: Pooled Representations

# Sum-pool over valid EMS and available items
ems_sum = jnp.sum(ems_emb, axis=-2, where=ems_mask[..., None])
items_avail = observation.items_mask & ~observation.items_placed
items_sum = jnp.sum(items_emb, axis=-2, where=items_avail[..., None])

# MLP to scalar value in [0, 1]
joint = jnp.concatenate([ems_sum, items_sum], axis=-1)
v = hk.nets.MLP([D, D, 1])(joint)
v = jax.nn.sigmoid(jnp.squeeze(v, axis=-1))  # Utilization target

Training: AlphaZero vs PPO

AlphaZero Training Loop

Each iteration:

1. Self-play: Run batched episodes using MCTS (32 simulations/move)
2. Compute targets: action_weights from MCTS, Monte Carlo returns for value
3. Train: Minimize cross-entropy (policy) + MSE (value)

def loss_fn(params, state, batch):
    (logits, value), state = forward.apply(params, state, batch.obs)

    # Policy: match MCTS action distribution
    pol_loss = optax.softmax_cross_entropy(logits, batch.policy_tgt)

    # Value: match Monte Carlo returns
    v_loss = optax.l2_loss(value, batch.value_tgt)

    mask = batch.mask.astype(jnp.float32)
    pol_loss = jnp.sum(pol_loss * mask) / jnp.sum(mask)
    v_loss = jnp.sum(v_loss * mask) / jnp.sum(mask)

    return pol_loss + v_loss, (state, pol_loss, v_loss)

PPO Baseline

For comparison, we implement PPO with the same network architecture (minus MCTS):

• Actions sampled from policy (no search)
• GAE for advantage estimation (λ = 0.95)
• Clipped surrogate objective (ε = 0.2)
• Value function clipping

# PPO clipped objective
ratio = jnp.exp(new_logp - old_logp)
surr1 = ratio * advantages
surr2 = jnp.clip(ratio, 1 - clip_eps, 1 + clip_eps) * advantages
policy_loss = -jnp.minimum(surr1, surr2).mean()

# Value clipping
v_clipped = old_v + jnp.clip(v - old_v, -clip_eps, clip_eps)
v_loss = jnp.maximum((v - returns)**2, (v_clipped - returns)**2).mean()

loss = policy_loss + 0.5 * v_loss - 0.01 * entropy

View PPO implementation

Results

Method	Avg Return	Eval (Greedy)	Sims/Move
PPO	0.90	0.90	—
AlphaZero (nsim=8)	0.93	0.92	8
AlphaZero (nsim=32)	0.96	0.95	32
AlphaZero (nsim=64)	0.96	0.95	64

Key Observations

Computational Cost

MCTS is significantly more expensive per environment step:

• PPO: ~1× forward pass per step
• AlphaZero (nsim=32): ~32× forward passes per step

However, AlphaZero reaches 0.96 utilization in ~400 iterations, while PPO plateaus at 0.90 regardless of training length.

Hyperparameters

Parameter	AlphaZero	PPO
Learning rate	1e-3	3e-4
Batch size (selfplay)	1024	1024
Batch size (training)	4096	4096
Discount (γ)	1.0	1.0
GAE λ	—	0.95
PPO clip ε	—	0.2
Entropy coef	—	0.01
Max grad norm	1.0	1.0
